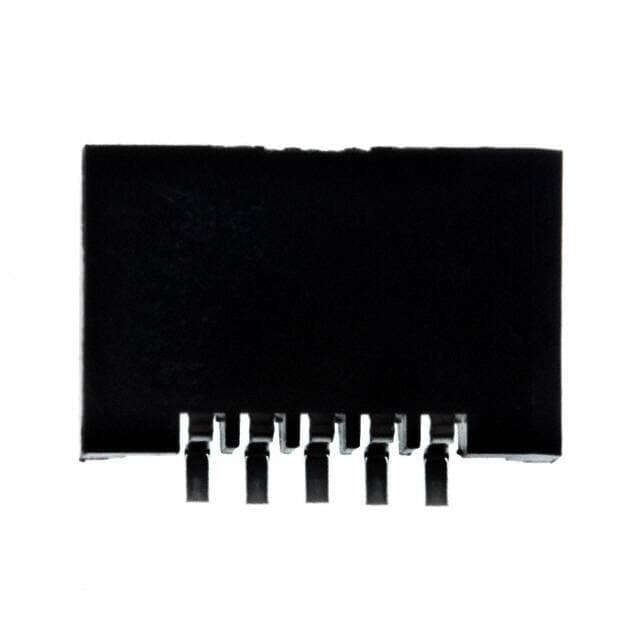

JST 05FMN-SMT-A-TF(LF)(SN)

Manufacturer No:

05FMN-SMT-A-TF(LF)(SN)

Manufacturer:

Package:

Description:

FMN Series FFC Contacts, Top Tape & Reel (TR) 0.039 1.00mm Solder 5 Positions Surface Mount, Right Angle Tin -25°C~85°C 0.5A

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

05FMN-SMT-A-TF(LF)(SN) information

JST 05FMN-SMT-A-TF(LF)(SN) technical specifications, attributes, parameters and parts with similar specifications to JST 05FMN-SMT-A-TF(LF)(SN).

Type
Parameter

Factory Lead Time
18 Weeks

Contact Material
Phosphor Bronze

Mount
Surface Mount

Mounting Type
Surface Mount, Right Angle

Housing Material
Polyamide (PA6T), Nylon 6T

Operating Temperature
-25°C~85°C

Packaging
Tape & Reel (TR)

Series
FMN

Published
2010

JESD-609 Code
e3

Feature
Low Insertion Force (LIF)

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

Number of Positions
5

Number of Rows
1

Voltage - Rated
50V

Additional Feature
SIDE ENTRY

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Mixed Contacts
NO

Current Rating (Amps)
0.5A

Pitch
0.039 1.00mm

Total Number of Contacts
5

Current Rating
500mA

Contact Finish
Tin

Mating Information
NO

Contact Gender
FEMALE

UL Flammability Code
94V-0

Housing Color
Black

Flat Flex Type
FFC

Connector/Contact Type
Contacts, Top

Cable End Type
Straight

Height
3mm

Length
8mm

Width
5.1mm

Height Above Board
0.118 3.00mm

FFC, FCB Thickness
0.30mm

Material Flammability Rating
UL94 V-0

RoHS Status
RoHS Compliant

Flammability Rating
UL94 V-0

Lead Free
Lead Free

Download datasheets and manufacturer documentation for JST 05FMN-SMT-A-TF(LF)(SN).

Datasheets:

jstsalesamericainc-10fmnsmtatflfsn-datasheets-2147.pdf

05FMN-SMT-A-TF(LF)(SN) Overview

Its mounting type is Surface Mount, Right Angle.Packaging is performed using a Tape & Reel (TR) case.It is part of the FMN Series of products.Additionally, there are other features, such as SIDE ENTRY.A number of features make it more powerful because of its Low Insertion Force (LIF) feature.Surface Mount mounts the part.There is no operating temperature for the device.

05FMN-SMT-A-TF(LF)(SN) Features

FMN series

05FMN-SMT-A-TF(LF)(SN) Applications

There are a lot of JST Sales America Inc.
05FMN-SMT-A-TF(LF)(SN) FFC, FPC (Flat Flexible) Connectors applications.

Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
Blowers
