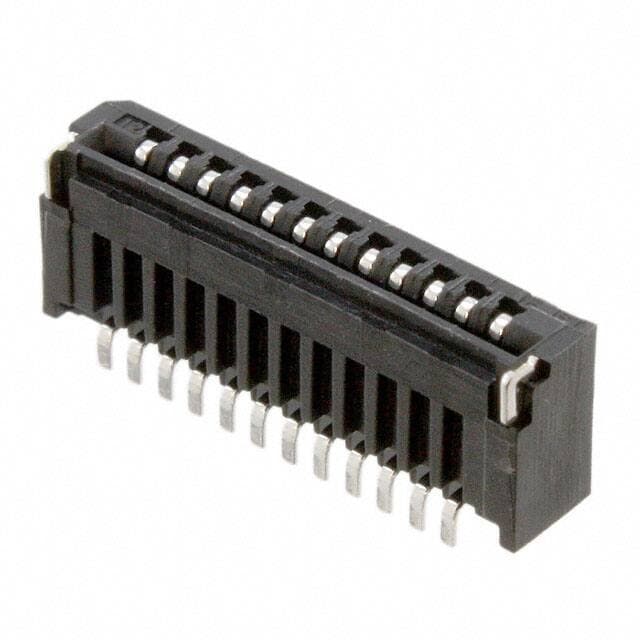

JST 12FMN-SMT-A-TF(LF)(SN)

Manufacturer No:

12FMN-SMT-A-TF(LF)(SN)

Manufacturer:

Package:

Description:

FMN Series FFC Contacts, Top Tape & Reel (TR) 0.039 1.00mm Solder 12 Positions Surface Mount, Right Angle Tin -25°C~85°C 0.5A

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

12FMN-SMT-A-TF(LF)(SN) information

JST 12FMN-SMT-A-TF(LF)(SN) technical specifications, attributes, parameters and parts with similar specifications to JST 12FMN-SMT-A-TF(LF)(SN).

Type
Parameter

Factory Lead Time
16 Weeks

Contact Material
Phosphor Bronze

Mount
Surface Mount

Mounting Type
Surface Mount, Right Angle

Housing Material
Polyamide (PA6T), Nylon 6T

Operating Temperature
-25°C~85°C

Packaging
Tape & Reel (TR)

Series
FMN

Published
2010

JESD-609 Code
e3

Feature
Low Insertion Force (LIF)

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

Number of Positions
12

Number of Rows
1

Gender
Receptacle

Voltage - Rated
50V

Additional Feature
SIDE ENTRY

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Option
GENERAL PURPOSE

Current Rating (Amps)
0.5A

Pitch
0.039 1.00mm

Total Number of Contacts
12

Current Rating
500mA

Contact Finish
Tin

Mating Information
NO

UL Flammability Code
94V-0

Housing Color
Black

Flat Flex Type
FFC

Connector/Contact Type
Contacts, Top

Cable End Type
Straight

Height Above Board
0.118 3.00mm

FFC, FCB Thickness
0.30mm

Material Flammability Rating
UL94 V-0

REACH SVHC
No SVHC

RoHS Status
RoHS Compliant

Flammability Rating
UL94 V-0

Lead Free
Lead Free

Download datasheets and manufacturer documentation for JST 12FMN-SMT-A-TF(LF)(SN).

Datasheets:

jstsalesamericainc-10fmnsmtatflfsn-datasheets-2147.pdf

12FMN-SMT-A-TF(LF)(SN) Overview

This device has a mounting type of Surface Mount, Right Angle.We package the product with a Tape & Reel (TR) case.The product is part of the FMN Series.Additionally, there are features like SIDE ENTRY, just to name a few.This feature makes it more powerful in a number of ways due to its Low Insertion Force (LIF) feature.You've got Surface Mount mounted on the part.This device runs at -25°C~85°C operating temperature.

12FMN-SMT-A-TF(LF)(SN) Features

FMN series

12FMN-SMT-A-TF(LF)(SN) Applications

There are a lot of JST Sales America Inc.
12FMN-SMT-A-TF(LF)(SN) FFC, FPC (Flat Flexible) Connectors applications.

Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
Blowers
Control panels
Electrical substations
Energy efficient lighting (LED)
LED municipal outdoor and street lighting
