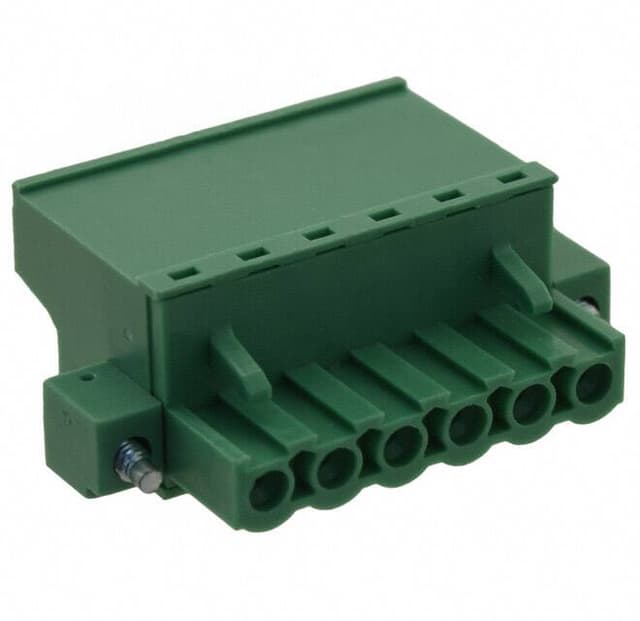

Amphenol 20020012-G101B01LF

Manufacturer No:

20020012-G101B01LF

Manufacturer:

Package:

Description:

Bulk 0.197 5.00mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets 03-500 Thermoplastic Resin Tin Copper Alloy

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

20020012-G101B01LF information

Amphenol 20020012-G101B01LF technical specifications, attributes, parameters and parts with similar specifications to Amphenol 20020012-G101B01LF.

Type
Parameter

Factory Lead Time
21 Weeks

Contact Material
Copper Alloy

Mount
Cable, Free Hanging

Mounting Type
Free Hanging (In-Line)

Housing Material
Thermoplastic Resin

Operating Temperature
-40°C~115°C

Packaging
Bulk

Series
03-500

Published
2011

Feature
Mating Flange, Retention Latches (Non-Wire Side)

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Screw

ECCN Code
EAR99

Connector Type
Terminal Block

Type
Plug, Female Sockets

Color
Green

Number of Rows
1

Voltage - Rated
300V

HTS Code
8536.69.40.40

Pitch
0.197 5.00mm

Orientation
Straight

Depth
15mm

Insulation Height
1.083 27.51mm

Termination Style
Screw - Pressure Clip

Number of Contacts
10

Voltage
300V

Max Voltage Rating (AC)
300V

Max Current Rating
10A

Number of Levels
1

Current
10A

Wire Gauge (Max)
22 AWG

Wire Gauge (Min)
12 AWG

Wire/Cable Gauge
28 AWG

Contact Mating Finish
Tin

Number of Decks
1

Wire Gauge or Range - AWG
12-22 AWG

Torque - Screw
0.4 Nm (3.5 Lb-In)

Number of Ways
10

Safety Approval
UL

Plug Wire Entry
180°

Wire Gauge or Range - mm²
1-2.5mm2

Wire Strip Length
6-7mm

Screw Size
M2.5

Wire Cross Section
2.5 mm2

Max Supply Voltage (AC)
300V

Length
59.6mm

Download datasheets and manufacturer documentation for Amphenol 20020012-G101B01LF.

Datasheets:

amphenolanytek-20020012g021b01lf-datasheets-7458.pdf

20020012-G101B01LF Overview

The product comes in a package of Terminal Block.Free Hanging (In-Line) is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the 03-500 Series.It is more powerful in many ways due to its Mating Flange, Retention Latches (Non-Wire Side) feature.It is mounted by Cable, Free Hanging.It operates at an operating temperature of -40°C~115°C.Compared to other Plug, Female Sockets products, this part has a lot of benefits to offer.

20020012-G101B01LF Features

03-500 series

20020012-G101B01LF Applications

There are a lot of Amphenol Anytek
20020012-G101B01LF Terminal Blocks applications.

Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
