ADI 78M6613-IM/F/P48

Manufacturer No:

78M6613-IM/F/P48

Manufacturer:

ADI

Package:

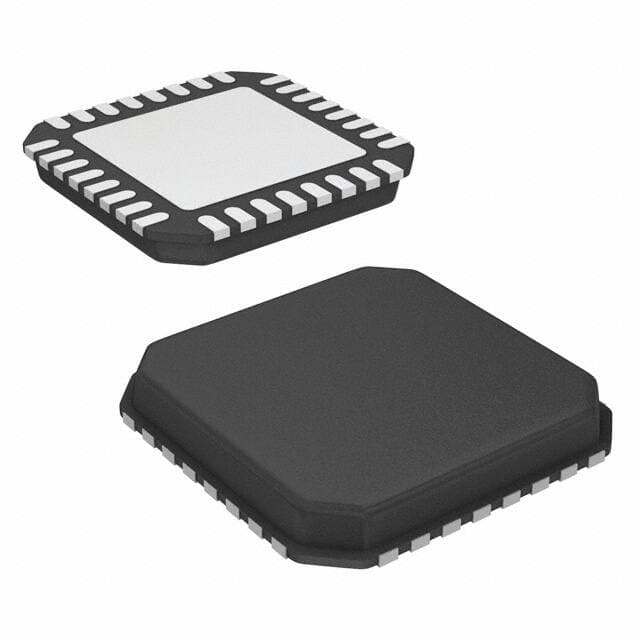

32-VFQFN Exposed Pad

Description:

PMIC Teridian? Series 78M6613 3.3V 32-VFQFN Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

78M6613-IM/F/P48 information

ADI 78M6613-IM/F/P48 technical specifications, attributes, parameters and parts with similar specifications to ADI 78M6613-IM/F/P48.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
32-VFQFN Exposed Pad

Surface Mount
YES

Operating Temperature
-40°C~85°C

Packaging
Tray

Series
Teridian?

Published
2010

Pbfree Code
no

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
32

ECCN Code
EAR99

Voltage - Supply
3V~3.6V

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
3.3V

Reach Compliance Code
unknown

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
78M6613

Operating Supply Voltage
3.3V

Supply Voltage-Max (Vsup)
3.6V

Supply Voltage-Min (Vsup)
3V

Interface
UART

Memory Size
32kB

Analog IC - Other Type
POWER SUPPLY MANAGEMENT CIRCUIT

RAM Size
2kB

Memory Type
FLASH

Adjustable Threshold
NO

Current - Supply
9.1mA

Data Bus Width
32b

Number of Timers/Counters
2

Max Frequency
64Hz

Input Impedance
40kOhm~90kOhm

Meter Type
Single Phase

Measurement Error
0.5%

Voltage - I/O Low
0.8V

Voltage - I/O High
2V

Length
5mm

Height Seated (Max)
0.9mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ADI 78M6613-IM/F/P48.

Datasheets:

maximintegrated-78m6613imfpw2-datasheets-5520.pdf

maximintegrated-78m6613imrf-datasheets-9542.pdf

maximintegrated-78m6613imrf-datasheets-9543.pdf

ConflictMineralStatement:

maximintegrated-ds1075z66n-conflictmineralstatement-7504.pdf

78M6613-IM/F/P48 Overview

I have packed this in Tray. A package named 32-VFQFN Exposed Pad. A Single Phase meter can be used with it as well. Surface Mount is one of the available options. There is a higher operating temperature at -40°C~85°C. Power is supplied by 3V~3.6V power supply, which allows it to operate. You can find more similar parts by searching 78M6613. The I/O ports on this PMIC have a voltage of zero on their low-level interfaces. There is a voltage value of 2V on this device as it is designed for high-level I/Os. Parts of the part have 32 terminations on them. An analog POWER SUPPLY MANAGEMENT CIRCUIT IC with strong PMIC capabilities. The normal voltage required for the part is 3.3V. To be able to operate this device, the user should be aware that a voltage of 3V or higher is required in order for it to work. In order to prevent damage to the device, it is important to keep the maximum voltage below 3.6V. The device is a 9.1mA. A logic device such as this has been implemented with 1 channels inside it. You can find it in the Teridian? series. It is possible to supply this device using the 3.3V protocol. There is a possibility of this device working up to a frequency of 64Hz. An integrated memory size 32kB has been incorporated into this PMIC. PMICs use FLASH memory to store data.

78M6613-IM/F/P48 Features

Single Phase meter.
POWER SUPPLY MANAGEMENT CIRCUIT analog IC.
1 channels.
Operating maximum frequency: 64Hz.
32kB adequate size for target applications.
FLASH memory.

78M6613-IM/F/P48 Applications

There are a lot of Maxim Integrated
78M6613-IM/F/P48 Energy Metering ICs applications.

Intelligent Power Distribution Units
Telecom Infrastructure
Industrial Equipment
General Purpose Energy Measurement
Power monitoring/power budgeting
Central office equipment
Telecommunications and data communications equipment
PCs/servers
Power monitoring instruments
Poly-phase energy meters of class 0.5S and class 1
