Adafruit Industries LLC 812

Manufacturer No:

812

Manufacturer:

Adafruit Industries LLC

Package:

14-DIP (0.600, 15.24mm)

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

812 information

Adafruit Industries LLC 812 technical specifications, attributes, parameters and parts with similar specifications to Adafruit Industries LLC 812.

Type
Parameter

Factory Lead Time
2 Weeks

Package / Case
14-DIP (0.600, 15.24mm)

Packaging
Bulk

Size / Dimension
0.749 Hx1.978W x 0.315 D 19.00mmx50.20mmx8.00mm

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Color
Blue

Power Dissipation-Max
100mW

Voltage - Forward (Vf) (Typ)
3.2V

Current - Test
20mA

Forward Voltage
3.2V

Luminous Intensity
15 mcd

Millicandela Rating
15mcd

Wavelength - Peak
468nm

Display Type
7-Segment Clock

Number of Characters
4

Digit/Alpha Size
0.56 14.22mm

Common Pin
Common Cathode

Height
19.0246mm

Width
50.2412mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Adafruit Industries LLC 812.

Datasheets:

adafruitindustriesllc-812-datasheets-0267.pdf

Description:

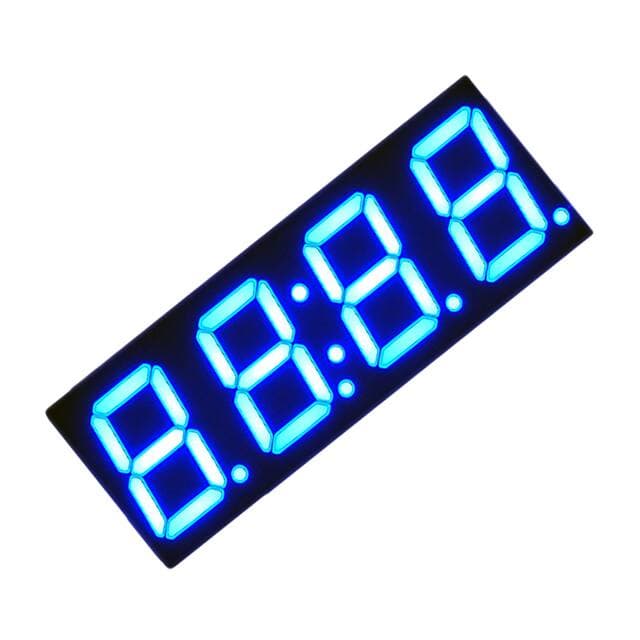

The Adafruit Industries Display Modules - LED Character and Numeric 812: BLUE 7-SEGMENT CLOCK DISPLAY is a 7-segment clock display module that is perfect for displaying time, date, or other numerical information. It features a bright blue LED display with a wide viewing angle and low power consumption. The module is easy to use and can be connected to any microcontroller or other device with a 3-pin header.

Features:

? Bright blue LED display with wide viewing angle
? Low power consumption
? Easy to use
? 3-pin header connection
? Can be used to display time, date, or other numerical information

Applications:

The Adafruit Industries Display Modules - LED Character and Numeric 812: BLUE 7-SEGMENT CLOCK DISPLAY can be used in a variety of applications, including:

? Digital clocks
? Timers
? Countdowns
? Alarm clocks
? Scoreboards
? Industrial displays
? Automotive displays
? Medical displays
