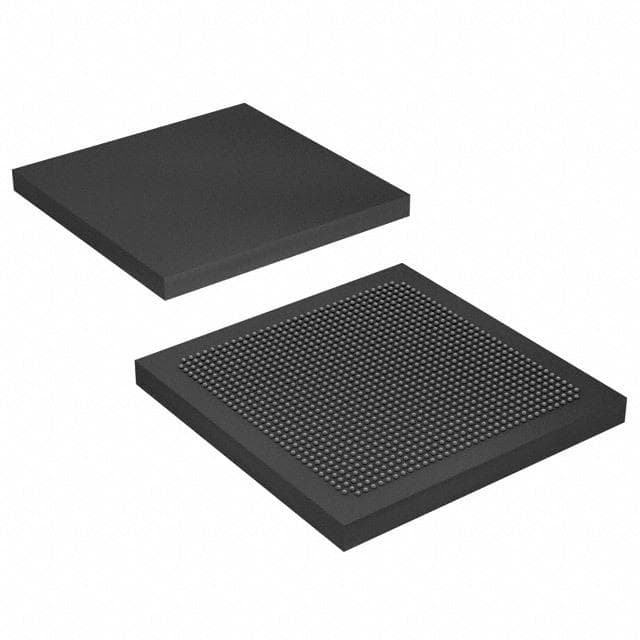

INTEL EP4SGX530HH35C2NES

Manufacturer No:

EP4SGX530HH35C2NES

Manufacturer:

INTEL

Package:

FCBGA

Description:

3.8mm mm FPGAs FCBGA 1mm mm 1152

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EP4SGX530HH35C2NES information

INTEL EP4SGX530HH35C2NES technical specifications, attributes, parameters and parts with similar specifications to INTEL EP4SGX530HH35C2NES.

Type
Parameter

Mount
Surface Mount

Package / Case
FCBGA

Published
2008

JESD-609 Code
e1

Pbfree Code
yes

Number of Terminations
1152

ECCN Code
3A001.A.7.A

Terminal Finish
TIN SILVER COPPER

Max Operating Temperature
85°C

Min Operating Temperature
0°C

HTS Code
8542.39.00.01

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
245

Supply Voltage
0.9V

Terminal Pitch
1mm

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
1152

JESD-30 Code
S-PBGA-B

Qualification Status
Not Qualified

Supply Voltage-Max (Vsup)
0.93V

Temperature Grade
OTHER

Supply Voltage-Min (Vsup)
0.87V

Number of I/O
564

Clock Frequency
800MHz

Programmable Logic Type
FIELD PROGRAMMABLE GATE ARRAY

Number of Logic Elements/Cells
531200

Number of Logic Blocks (LABs)
21248

Length
42.5mm

Height Seated (Max)
3.8mm

Width
42.5mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for INTEL EP4SGX530HH35C2NES.

EP4SGX530HH35C2NES Overview

Fpga chips is supplied in the FCBGA package. This kind of FPGA is composed of FIELD PROGRAMMABLE GATE ARRAY. Fpga chips is programmed wFpga chipsh 564 I/Os for transferring data in a more coherent manner. There are 531200 logic elements/cells to form a fundamental building block. Fpga chips is powered from a supply voltage of 0.9V. Fpga chips is designed wFpga chipsh 1152 terminations. The RAM si3.3MBe of this FPGA module reaches 3.3MB to ensure normal operation of the program. As long as this FPGA is mounted in Surface Mount, it could work fantastically according to its specifications. The maximal operating temperature of this module reaches 85°C. The operating temperature should be higher than 0°C. Fpga semiconductor is equipped wfpga semiconductorh 1152 pin count. Its basic building block is composed of 21248 logic blocks (LABs). Typically, fpga semiconductor uses a crystal oscillating at 800MHz . The supply voltage (Vsup) should be greater than 0.87V to keep this FPGA in-check.

EP4SGX530HH35C2NES Features

564 I/Os
85°C gates
21248 logic blocks (LABs)

EP4SGX530HH35C2NES Applications

There are a lot of Altera
EP4SGX530HH35C2NES FPGAs applications.

Digital signal processing
Bioinformatics
Device controllers
Software-defined radio
Random logic
ASIC prototyping
Medical imaging
Computer hardware emulation
Integrating multiple SPLDs
Voice recognition

User Guide
