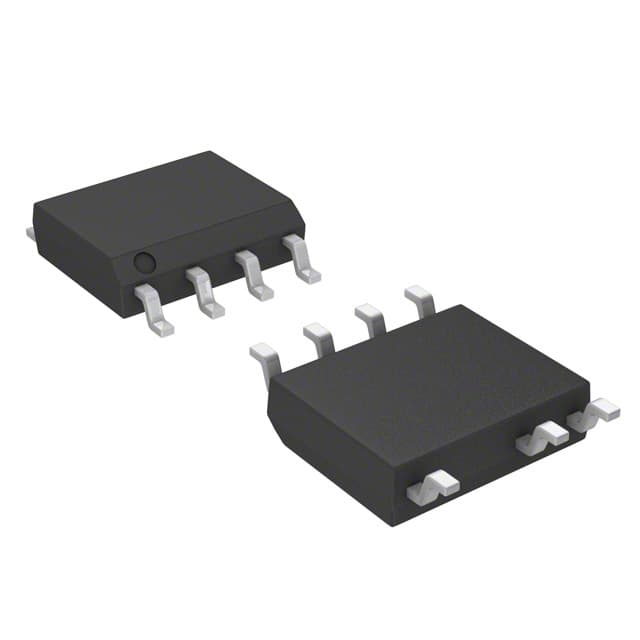

Renesas IW1810-00

Manufacturer No:

IW1810-00

Manufacturer:

Renesas

Package:

8-SOIC (0.154, 3.90mm Width), 7 Leads

Description:

16V AC to DC power converter 64kHz

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IW1810-00 information

Renesas IW1810-00 technical specifications, attributes, parameters and parts with similar specifications to Renesas IW1810-00.

Type
Parameter

Factory Lead Time
20 Weeks

Mounting Type
Surface Mount

Package / Case
8-SOIC (0.154, 3.90mm Width), 7 Leads

Operating Temperature
150°C TJ

Packaging
Tape & Reel (TR)

Published
2012

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

ECCN Code
EAR99

Power (Watts)
5W

HTS Code
8542.39.00.01

Peak Reflow Temperature (Cel)
270

Time@Peak Reflow Temperature-Max (s)
10

Analog IC - Other Type
SWITCHING CONTROLLER

Voltage - Supply (Vcc/Vdd)
16V

Control Features
EN, Soft Start

Topology
Flyback

Frequency - Switching
64kHz

Internal Switch(s)
Yes

Fault Protection
Current Limiting, Over Voltage, Short Circuit

Output Isolation
Isolated

Voltage - Breakdown
800V

Voltage - Start Up
10.5V

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas IW1810-00.

Datasheets:

dialogsemiconductorgmbh-iw181000-datasheets-3080.pdf

IW1810-00 Overview

8-SOIC (0.154, 3.90mm Width), 7 Leads is the package in which the ac to dc converter is embedded.There is a AC/DC power converter of Tape & Reel (TR) available.Surface Mount is mounted in the way of this AC/DC converter.It is necessary to operate the ac dc converter at a temperature of 150°C TJ °C in order for it to perform properly.The AC DC converter uses a type SWITCHING CONTROLLER analog integrated circuit.When the switching frequency reaches 64kHz , the circuit is closed.The voltage range of the supply can be set to 16V (Vcc/Vdd).

IW1810-00 Features

Packaged with 8-SOIC (0.154, 3.90mm Width), 7 Leads
Switching Frequency at 64kHz

IW1810-00 Applications

There are a lot of Dialog Semiconductor GmbH
IW1810-00 AC DC Converters applications.

AC/DC Adaptors/Chargers for PDAs
AC/DC Adaptors/Chargers for E-books
Adaptors for Portable Media Player
Adaptors for DSCs
Set-top boxes
DVD players
Records
Linear Adapter Replacements
Chargers for cell/cordless phones
PDAs
