ST STPS340UY

Manufacturer No:

STPS340UY

Manufacturer:

Package:

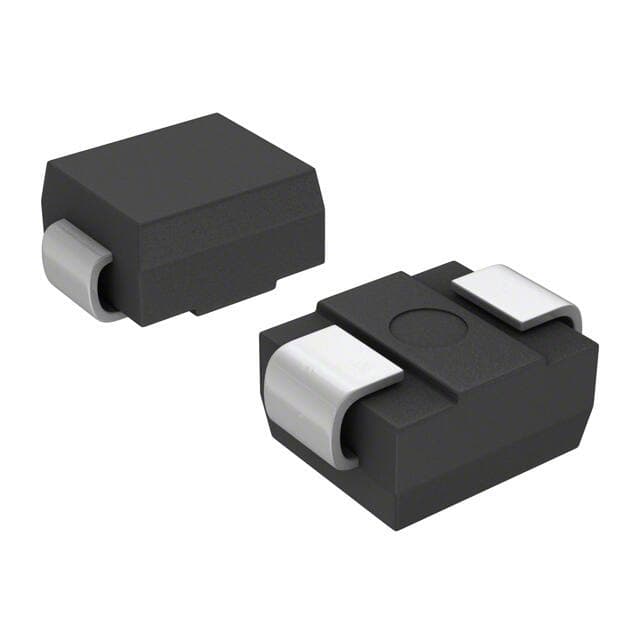

ROHS COMPLIANT, PLASTIC, SMB, 2 PIN

Description:

Automotive 40 V, 3 A Power Schottky Rectifier

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

STPS340UY information

ST STPS340UY technical specifications, attributes, parameters and parts with similar specifications to ST STPS340UY.

Type
Parameter

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
STMICROELECTRONICS

Package Description
ROHS COMPLIANT, PLASTIC, SMB, 2 PIN

Reach Compliance Code
not_compliant

ECCN Code
EAR99

Factory Lead Time
15 Weeks

Samacsys Manufacturer
STMicroelectronics

Additional Feature
FREE WHEELING DIODE

Application
FAST RECOVERY POWER

Configuration
SINGLE

Diode Element Material
SILICON

Diode Type
RECTIFIER DIODE

Forward Voltage-Max (VF)
0.84 V

JESD-30 Code
R-PDSO-C2

JESD-609 Code
e3

Moisture Sensitivity Level
1

Non-rep Pk Forward Current-Max
75 A

Number of Elements
1

Number of Phases
1

Number of Terminals
2

Operating Temperature-Max
150 °C

Operating Temperature-Min
-40 °C

Package Body Material
PLASTIC/EPOXY

Package Style
SMALL OUTLINE

Peak Reflow Temperature (Cel)
260

Reference Standard
AEC-Q101

Rep Pk Reverse Voltage-Max
40 V

Reverse Current-Max
20 µA

Surface Mount
YES

Technology
SCHOTTKY

Terminal Finish
Matte Tin (Sn)

Terminal Form
C BEND

Terminal Position
DUAL

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Download datasheets and manufacturer documentation for ST STPS340UY.

Datasheets:

en.CD00270569.pdf

STPS340UY Overview

Reverse leakage current is maximally zero volts with this device.This device's average rectified current is zero volts.A forward current of 3A is allowed.Surge currents are limited to 75A.The datasheets show a peak reverse of 20?A, as shown in the data chart.

STPS340UY Features

a maximal reverse leakage current of 10mA volts
an average rectified current of 3A volts
the peak reverse is 20?A

STPS340UY Applications

There are a lot of STMicroelectronics
STPS340UY applications of single-phase diode rectifier.

DC motor control and drives
Battery chargers
Welders
Power converters
Reverse Polarity Protection
Ultra High-Speed Switching
Freewheeling
Polarity Protection Diode
Recirculating Diode
Switching Diode
