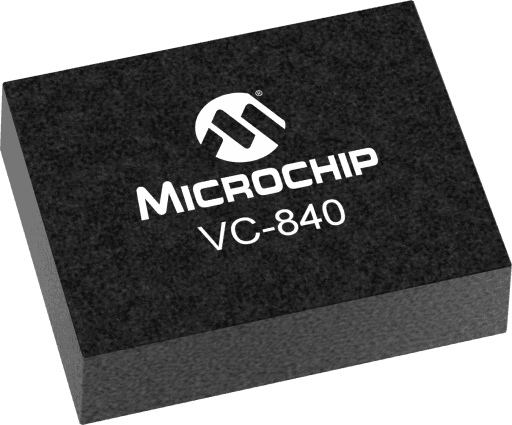

Microchip VC-840-EAE-FAAN-14M3181800

Manufacturer No:

VC-840-EAE-FAAN-14M3181800

Manufacturer:

Microchip

Package:

ROHS COMPLIANT, HERMETIC SEALED PACKAGE-4

Description:

Vectron\u0027s VC–840 Crystal Oscillator (XO) is a quartz stabilized square wave generator with a CMOS output. The VC–840 is a fundamental oscillator resulting in very low jitter performance, and a monolithic IC which improves reliability and reduces cost.

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

VC-840-EAE-FAAN-14M3181800 information

Microchip VC-840-EAE-FAAN-14M3181800 technical specifications, attributes, parameters and parts with similar specifications to Microchip VC-840-EAE-FAAN-14M3181800.

Type
Parameter

Dimensions
2520 4-Pin

Supply Voltage
2.5, 3.3

TempRange Max °C (degrees Celsius)
105

TempRange Min °C (degrees Celsius)
-40

Download datasheets and manufacturer documentation for Microchip VC-840-EAE-FAAN-14M3181800.

The VC–840 Crystal Oscillator (XO) is a quartz stabilized square wave generator with a CMOS output. The VC–840 is a fundamental oscillator resulting in very low jitter performance and a monolithic IC which improves reliability and reduces cost.

Frequency Range - 1MHz to 160MHz

Size - 2.5x2.0mm

Output Format - CMOS

RMS Phase Jitter - 90fs

Supply Voltage - 1.8, 2.5, 3.3

Maximum Operating Temperature Range - -40 to +105C

Applications - SONET/SDH/DWDM, Ethernet/GE/SynchE, Storage Area Networking, Fiber Channel, Digital Video, Broadband Access, Base Stations, Picocells

User Guide
